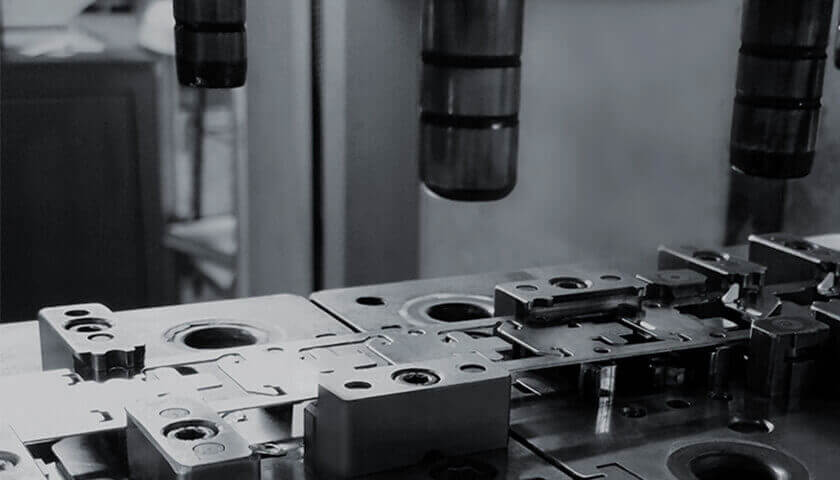

Slug pulling is a persistent challenge in metal stamping operations, especially when working with steel. When slugs stick to the punch and are carried back into the die, they can cause tool damage, part defects, and costly downtime. For manufacturers and toolmakers, understanding steel stamping slug pulling prevention tips is essential for maintaining productivity and ensuring part quality.
This guide explores practical methods to minimize slug pulling, from die design tweaks to maintenance routines and operator training. By applying these proven shop strategies, you can reduce the risk of slugs being pulled, extend tool life, and improve your overall stamping process.
For those working with coated steels, it’s also helpful to review best practices for stamping coated steels to avoid surface damage and related issues.
Understanding Slug Pulling in Steel Stamping
Slug pulling occurs when the punched-out piece of material (the slug) adheres to the punch and is withdrawn from the die cavity during the return stroke. This can result in double hits, tool chipping, or even catastrophic die failure. The problem is especially common in high-speed operations and with certain steel grades, where factors like material ductility, die clearance, and punch condition play a significant role.
Recognizing the causes is the first step in implementing effective steel stamping slug pulling prevention tips. Common contributors include:
- Improper die clearance
- Worn or damaged punches
- Insufficient lubrication
- Incorrect punch-to-die alignment
- Lack of slug retention features
Die Design Adjustments for Slug Retention
One of the most reliable ways to prevent slug pulling is to incorporate slug retention features directly into the die design. These features help keep the slug in the die cavity, reducing the chance of it being pulled back by the punch.
- Slug Retention Grooves: Small grooves or undercuts in the die cavity create a mechanical lock for the slug, holding it in place after the punch withdraws.
- Shear Angles: Adding a slight shear angle to the punch face can reduce the vacuum effect that sometimes causes slugs to stick.
- Die Button Modifications: Tapered or relieved die buttons can help slugs fall away more easily, especially in progressive dies.
When designing or retrofitting dies, consult with toolmakers to determine which retention features best suit your material and production volume. These design changes are often the most effective long-term solution for slug pulling.
Optimizing Punch and Die Maintenance
Regular maintenance is critical for minimizing slug pulling. Dull, chipped, or misaligned punches can increase the likelihood of slugs sticking. To keep your stamping process running smoothly:
- Inspect punches and dies frequently for wear or damage.
- Replace or regrind punches at the first sign of rounding or chipping.
- Check die clearances and adjust as needed to match material thickness and type.
- Ensure proper lubrication to reduce friction and prevent material buildup.
A well-maintained tool not only reduces slug pulling but also extends tool life and improves part consistency. Maintenance logs and scheduled inspections can help catch issues before they become production problems.
Operator Techniques and Shop Floor Practices
Even with optimal die design and maintenance, shop floor practices play a significant role in preventing slug pulling. Operators should be trained to recognize early signs of slug retention and take corrective action promptly.
- Monitor for double hits or unusual noise, which can indicate a pulled slug.
- Use compressed air or vacuum systems to clear slugs from die cavities during production runs.
- Adjust press speed and feed rates if slug pulling becomes frequent.
- Implement regular cleaning routines to remove debris and prevent buildup.
For more on creating a safe and efficient stamping environment, see how to train operators for steel stamping safety.
Material Selection and Lubrication Strategies
The choice of steel and the use of proper lubricants can make a significant difference in slug retention. Some steel grades are more prone to slug pulling due to their ductility or surface finish. When possible, select materials with properties that minimize sticking.
Lubrication is another key factor. High-quality stamping lubricants reduce friction and help slugs drop away from the punch. Consider:
- Using lubricants specifically designed for steel stamping applications.
- Applying lubricant evenly to both sides of the strip before stamping.
- Monitoring lubricant application systems for consistency and coverage.
If you’re working with coated or specialty steels, review steel stamping edge quality optimization for additional guidance on material handling and edge finish.
Advanced Solutions: Sensors and Automation
For high-volume or precision stamping operations, integrating sensors and automation can further reduce the risk of slug pulling. Technologies such as slug detection sensors can alert operators to a pulled slug before it causes tool damage or part defects.
- Install slug sensors in critical die stations to monitor for slug retention in real time.
- Use automated air blast or vacuum systems to clear slugs from die cavities between cycles.
- Incorporate programmable logic controllers (PLCs) to halt production if a slug is detected.
While these solutions require upfront investment, they can pay for themselves by preventing costly downtime and tool repairs.
For a broader look at die safety and forming operations, see this comprehensive guide to die operations safety in sheet metal forming.
Routine Process Audits and Continuous Improvement
Regularly auditing your stamping process helps identify new risks and opportunities for improvement. Document slug pulling incidents, analyze root causes, and implement corrective actions as part of your continuous improvement program.
- Track slug pulling frequency and correlate with tool condition, material lot, and press settings.
- Solicit feedback from operators for practical insights on recurring issues.
- Update training materials and standard operating procedures based on audit findings.
Continuous improvement not only reduces slug pulling but also enhances overall shop efficiency and product quality.
FAQ: Steel Stamping Slug Pulling Solutions
What are the most effective ways to prevent slug pulling in steel stamping?
The most effective methods include adding slug retention features to dies, maintaining sharp and properly aligned punches, using appropriate lubricants, and training operators to recognize and address early signs of slug retention.
How does die clearance affect slug pulling?
Incorrect die clearance can increase the likelihood of slug pulling. Too little clearance causes slugs to stick, while too much can lead to burrs and poor edge quality. Always match die clearance to material thickness and type for optimal results.
Can automation help reduce slug pulling in high-speed stamping?
Yes, automation such as slug detection sensors, air blast systems, and PLC controls can significantly reduce the risk of slug pulling in high-speed or high-volume operations by providing real-time monitoring and rapid response.
Conclusion
Addressing slug pulling in steel stamping requires a combination of smart die design, diligent maintenance, proper material and lubricant selection, and well-trained operators. By applying these steel stamping slug pulling prevention tips, manufacturers can minimize downtime, protect tooling, and ensure consistent part quality. For more technical guidance, explore resources on secondary operation considerations in steel stamping and improving repeatability in high-speed stamping.
