Achieving precise shut height adjustment is essential for safe and efficient steel stamping operations. Operators who understand the nuances of this process can improve part quality, extend die life, and reduce downtime. This guide provides practical advice and actionable steel stamping shut height adjustment tips to help operators optimize press setups and maintain consistent results.
Proper shut height adjustment not only prevents tool damage but also ensures that stamped parts meet tight dimensional tolerances. Whether working with transfer dies, progressive dies, or single-station setups, mastering these adjustments is a key skill for any press operator. For those looking to further enhance their stamping expertise, exploring steel stamping edge quality optimization can provide additional insights into producing high-quality components.

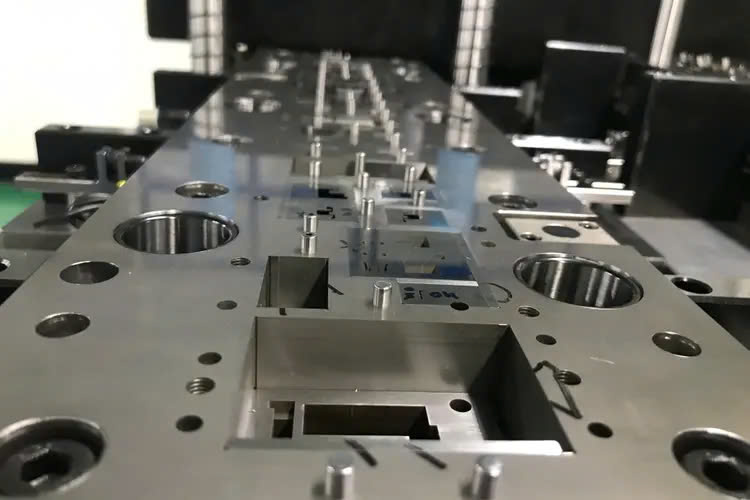

Understanding Shut Height in Steel Stamping
Shut height refers to the distance from the bolster plate to the slide (ram) face when the press is at bottom dead center and the die is fully closed. This measurement is critical because it determines how the die sets within the press and directly affects part quality and tooling longevity. Incorrect shut height can lead to issues such as:
- Excessive die wear or breakage
- Poor part formation or dimensional inaccuracies
- Press overloads and safety hazards
Operators must be familiar with the manufacturer’s specifications for both the press and the die set. Always verify the shut height value before making adjustments, and consult setup sheets or die manuals for reference.
Key Shut Height Adjustment Techniques for Operators
Effective shut height adjustment is a combination of technical knowledge and hands-on skill. Below are several shut height adjustment tips tailored for steel stamping operators:
- Use Precision Measuring Tools: Always use a height gauge, dial indicator, or digital readout to measure shut height accurately. Avoid relying solely on visual cues or “feel.”
- Check Die and Press Cleanliness: Ensure all mating surfaces are free from debris, oil, or scrap before setting the die. Even small particles can affect shut height and lead to uneven loading.
- Adjust in Small Increments: Make minor adjustments and check results after each change. Over-adjusting can damage tooling or produce out-of-spec parts.
- Verify with Test Runs: After setting the shut height, run a few test pieces and inspect them for dimensional accuracy and surface finish. Adjust as needed based on results.
- Document Settings: Record the final shut height setting for each die and press combination. This practice streamlines future setups and helps maintain consistency.
Common Mistakes in Shut Height Adjustment and How to Avoid Them
Even experienced operators can make errors during setup. Being aware of common pitfalls helps prevent costly downtime and scrap. Here are some frequent mistakes and ways to avoid them:
- Ignoring Die Wear: As dies wear, their shut height can change. Regularly inspect dies and update shut height settings to compensate for wear.
- Skipping Pre-Checks: Failing to check for loose fasteners, worn components, or misaligned guides can result in inaccurate shut height and press damage.
- Over-Tightening Adjustments: Excessive force when adjusting the ram or slide can strip threads or damage adjustment mechanisms. Always use the recommended torque.
- Neglecting Safety Procedures: Always lock out/tag out the press before making adjustments. Never reach into the die area without proper safeguards in place.
For more on maintaining tooling and preventing breakdowns, see this comprehensive guide to stamping die repair and maintenance.
Best Practices for Consistent Shut Height Results
Consistency is key in steel stamping operations. Adopting a standardized approach to shut height adjustment ensures repeatable results and reduces the risk of errors. Consider these best practices:
- Standardize Setup Procedures: Develop and follow a checklist for every die changeover. Include steps for measuring, cleaning, and verifying shut height.
- Train All Operators: Ensure that every operator understands the importance of proper shut height and is trained in the correct adjustment techniques. For a deeper dive into safety and training, review how to train operators for steel stamping safety.
- Monitor Press Performance: Use press monitoring systems to track shut height changes over time. This data can help identify trends and predict maintenance needs.
- Schedule Regular Inspections: Periodically check both the press and dies for wear, misalignment, or other issues that could affect shut height.
Advanced Shut Height Adjustment Tips for Complex Stamping Operations
As stamping operations become more complex, especially with high-strength steels or multi-stage dies, additional considerations come into play:
- Account for Material Springback: Some steels exhibit significant springback, which can affect final part dimensions. Adjust shut height to compensate, and verify with test pieces.
- Use Die Blocks or Shims: When working with worn dies or presses with minor deflection, use precision shims to achieve the correct shut height without over-adjusting the press itself.
- Monitor Temperature Effects: Die and press temperatures can influence shut height, especially during long production runs. Allow equipment to reach operating temperature before finalizing adjustments.
- Coordinate with Secondary Operations: If parts require additional processes, such as forming or trimming, ensure that shut height settings support downstream quality. For more on this, see steel stamping secondary operation considerations.
FAQ: Steel Stamping Shut Height and Operator Best Practices
What is the most accurate way to measure shut height?
The most accurate method is to use a calibrated height gauge or dial indicator placed between the bolster and the slide at bottom dead center. Digital readouts integrated with the press can also provide precise measurements. Always verify readings against the die manufacturer’s specifications.
How often should shut height be checked during production?
Shut height should be checked at the start of each production run, after any die change, and periodically during long runs—especially if producing high volumes or working with abrasive materials. Regular checks help catch drift due to wear or press deflection.
Can improper shut height adjustment damage the press or die?
Yes, incorrect shut height can cause excessive force on the die, leading to premature wear, breakage, or even catastrophic press failure. Always follow recommended adjustment procedures and never force the press beyond its rated capacity.
Conclusion
Mastering steel stamping shut height adjustment tips is fundamental for operators aiming to maximize productivity and maintain high-quality standards. By following best practices, using precise measurement tools, and staying vigilant for common mistakes, operators can ensure safe, efficient, and repeatable press setups. For those interested in further improving their processes, reviewing best practices for stamping coated steels and exploring how to reduce energy consumption in stamping plants can offer additional value. Consistent attention to detail and ongoing training will keep your stamping operations running smoothly and your tooling in top condition.
