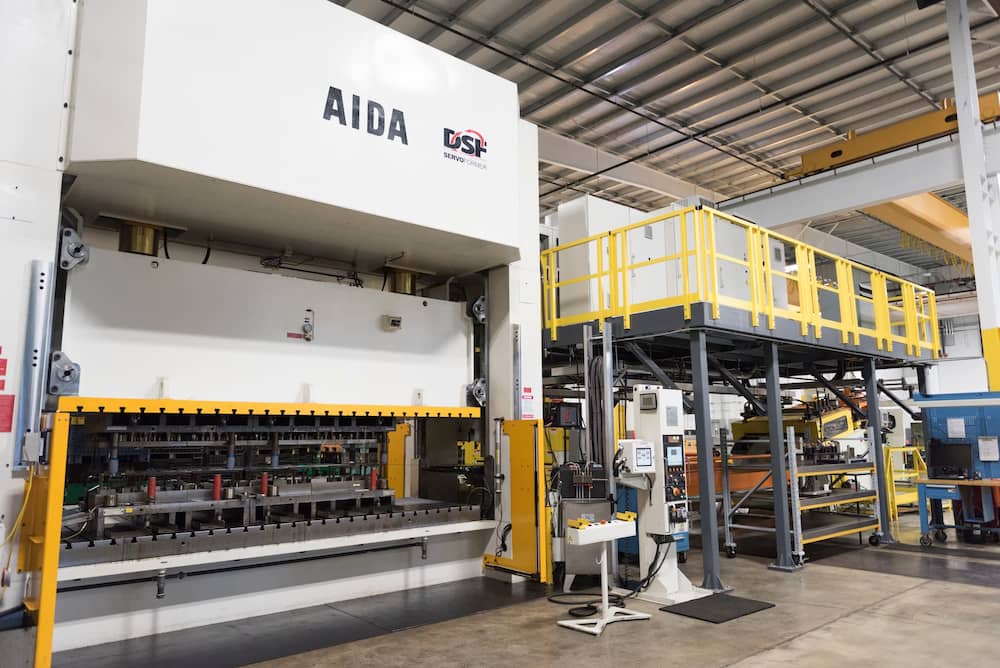

Understanding the steel stamping material grain size importance is crucial for manufacturers aiming to achieve consistent, high-quality stamped parts. Grain size in steel directly affects the mechanical properties, surface finish, and dimensional accuracy of stamped components. Whether producing automotive parts, electronic connectors, or industrial hardware, the microstructure of the raw material plays a decisive role in the outcome of the stamping process.
Many engineers and production managers focus on die design, press settings, and lubrication, but the underlying material characteristics—especially grain size—can make or break a stamping operation. Selecting the right grain structure helps minimize defects, reduce tool wear, and improve part performance. For those working with coated steels, integrating best practices for stamping coated steels is equally important to avoid surface damage and ensure optimal results.
How Grain Size Influences Steel Stamping Performance
The size of grains in steel is determined during the manufacturing process, particularly in the rolling and annealing stages. Fine-grained steels have a larger number of smaller crystals, while coarse-grained steels contain fewer, larger crystals. This difference in microstructure has a direct impact on how the material behaves under the intense pressure and deformation of stamping.
- Fine-grained steel offers improved ductility, allowing it to bend and form without cracking. This is especially beneficial for complex shapes or deep drawn parts.
- Coarse-grained steel tends to be more brittle, increasing the risk of tearing, orange peel, or surface defects during forming.
- Uniform grain size ensures predictable material flow, reducing the likelihood of inconsistent part dimensions or unexpected failures.
For applications where burr height is a concern, understanding the relationship between grain size and edge quality is essential. Manufacturers can refer to resources like steel stamping burr height standards to further optimize their processes.
Key Benefits of Optimizing Grain Structure in Stamping Materials
Controlling and specifying grain size in steel sheet or coil brings several advantages to stamping operations:
- Enhanced surface finish: Fine grains help achieve smoother, more uniform surfaces, which is critical for visible or plated parts.
- Reduced tool wear: Consistent grain structure minimizes abrasive action on dies, extending tool life and reducing maintenance costs.
- Improved dimensional accuracy: Predictable deformation leads to tighter tolerances and less scrap.
- Lower risk of cracking: Fine grains distribute stress more evenly, decreasing the chance of splits or fractures in formed parts.
These benefits are particularly important in high-volume production, where even small improvements in material behavior can translate to significant cost savings and quality gains.
Common Defects Linked to Improper Grain Size
When the grain size of steel is not properly matched to the stamping application, several types of defects can arise:
- Cracking and tearing: Coarse grains are more likely to initiate cracks, especially at sharp bends or during deep drawing.
- Orange peel effect: This surface roughness defect occurs when large grains deform unevenly, creating a pebbled appearance on the part surface.
- Edge burrs: Inconsistent grain structure can lead to excessive burr formation, complicating downstream processes and requiring additional deburring.
- Springback: Variations in grain size can cause unpredictable elastic recovery after forming, making it harder to maintain tight tolerances.
To minimize these issues, it is important to work closely with steel suppliers and specify grain size requirements in material orders. Regular inspection and testing can help catch inconsistencies before they impact production.
Testing and Specifying Grain Size for Stamping
Grain size is typically measured using standardized methods such as ASTM E112, which involves microscopic examination of polished and etched steel samples. The grain size number, often referred to as the ASTM grain size, provides a quantitative way to compare materials and ensure consistency.
When ordering steel for stamping, manufacturers should:
- Specify the required grain size range in purchase orders or technical drawings.
- Request mill certificates or test reports confirming compliance with specifications.
- Conduct periodic in-house checks, especially when switching suppliers or steel grades.
For new operators or teams refining their setup, reviewing steel stamping strip starting procedures can help establish robust quality control from the outset.
Best Practices for Managing Grain Size in Production
To maximize the benefits of optimal grain structure in steel stamping, consider the following best practices:
- Work with reputable steel mills that can consistently deliver material within your specified grain size range.
- Include grain size requirements in all technical documentation and quality agreements.
- Train operators and quality staff to recognize defects associated with improper grain size, such as orange peel or edge cracking.
- Collaborate with tool and die engineers to adjust die geometry or process parameters if material grain size changes.
- Monitor part ejection and handling processes, as grain size can influence how parts release from dies. For more on this, see how to optimize part ejection in stamping.
Impact of Grain Size on Downstream Processes and Product Performance
The effects of grain size extend beyond the stamping press. Fine-grained steel parts often exhibit better weldability, improved fatigue resistance, and superior performance in demanding environments. Conversely, coarse grains can lead to premature failure or reduced lifespan in service.
For industries where recyclability is a priority, understanding how grain structure interacts with stamping die design is also important. Manufacturers interested in sustainable practices can explore how to design stamping dies for recyclability to align material choices with environmental goals.
Die Maintenance and the Role of Material Microstructure
Tooling longevity is closely tied to the consistency of the steel being stamped. Variations in grain size can accelerate die wear, increase the frequency of repairs, and drive up maintenance costs. Regular inspection and proactive maintenance are essential for keeping production on track. For a deeper dive into this topic, review stamping die repair and maintenance basics for practical advice on extending tool life.
Frequently Asked Questions
Why is grain size control important in steel stamping?
Grain size control ensures that steel behaves predictably during forming, reducing the risk of defects such as cracking, orange peel, and excessive burrs. It also helps maintain consistent part dimensions and surface quality, which are essential for high-volume production and critical applications.
How can manufacturers measure and specify grain size?
Manufacturers use standardized tests like ASTM E112 to measure grain size through microscopic analysis. Specifications should be included in purchase orders and technical drawings, and material certificates from suppliers should confirm compliance.
What are the risks of using steel with inconsistent grain size?
Inconsistent grain size can lead to unpredictable forming behavior, increased scrap rates, tool wear, and defects such as surface roughness or cracking. It can also negatively affect downstream processes like welding or coating.
