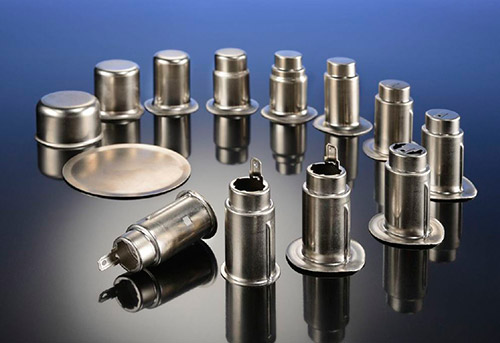

Understanding how to calculate stamping force requirements is essential for anyone involved in metal forming, die design, or production planning. Accurately determining the necessary force ensures not only the quality of stamped parts but also the safety and longevity of your equipment. This guide provides a clear, step-by-step approach to estimating the force needed for various stamping operations, with practical formulas, examples, and tips for real-world application.
Before diving into the calculations, it’s important to consider related factors such as material properties, die design, and process variables. For those looking to further optimize their stamping process, you may find value in reading about steel stamping material yield strength considerations, which can significantly impact force calculations and part quality.
Why Accurate Force Calculation Matters in Stamping
Calculating the correct force for stamping operations is crucial for several reasons:
- Equipment Protection: Using excessive force can damage presses and tooling, while insufficient force may result in incomplete cuts or deformations.
- Part Quality: Proper force ensures clean edges, precise shapes, and consistent dimensions.
- Safety: Overloading equipment increases the risk of accidents. Following recommended safety precautions for metal stamping machinery is always advised.
- Efficiency: Accurate force estimation helps in selecting the right press and optimizing cycle times.
Key Factors Affecting Stamping Force
Several variables influence the force required for a stamping operation. Understanding these helps in making more accurate calculations:
- Material Type: Different metals have varying shear strengths and thicknesses.
- Material Thickness: Thicker materials require more force.
- Perimeter of Cut: The total length of the cut edge directly impacts force requirements.
- Die Clearance: Proper clearance reduces force and improves cut quality.
- Type of Operation: Blanking, piercing, and forming each have unique force considerations.
For those working with coated steels, reviewing best practices for stamping coated steels can help minimize damage and optimize force usage.
Step 1: Gather Required Data
Before performing any calculations, collect the following information:
- Material type and grade (e.g., mild steel, stainless steel, aluminum)
- Material thickness (in mm or inches)
- Shear strength of the material (in N/mm² or psi)
- Perimeter of the cut (total length of the cutting edge, in mm or inches)
Material data can often be found on supplier datasheets or engineering references. If you need to understand how grain size affects stamping quality, see this resource on steel stamping material grain size importance.
Step 2: Apply the Basic Stamping Force Formula
The most common formula for estimating blanking or piercing force is:
Force (N) = Perimeter (mm) × Material Thickness (mm) × Shear Strength (N/mm²)
For those using imperial units:
Force (tons) = (Perimeter (in) × Thickness (in) × Shear Strength (psi)) / 2,000,000
Where:
- Perimeter is the total length of the cut edge.
- Material thickness is the gauge of the sheet.
- Shear strength is the resistance of the material to shearing, typically provided by the supplier.
Step 3: Example Calculation
Let’s walk through a practical example using the metric formula:
- Material: Mild steel (shear strength ≈ 250 N/mm²)
- Thickness: 2 mm
- Perimeter: 300 mm
Plugging these values into the formula:
Force = 300 mm × 2 mm × 250 N/mm² = 150,000 N (or 150 kN)
To convert newtons to tons (metric):
1 ton = 9,806.65 N, so
150,000 N ÷ 9,806.65 ≈ 15.3 tons
This means a press capable of at least 16 tons would be recommended for this operation, allowing a safety margin.

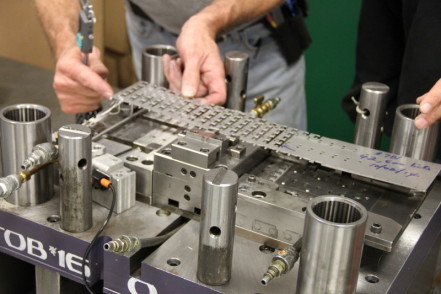

Step 4: Adjust for Process Variables
While the basic formula provides a solid starting point, several real-world factors may require you to adjust your calculations:
- Die Condition: Worn or misaligned dies can increase required force.
- Lubrication: Proper lubrication reduces friction and force.
- Clearance: Too little or too much clearance between punch and die affects force and part quality.
- Part Geometry: Complex shapes or deep draws may need more force than simple blanks.
- Safety Margin: It’s recommended to add 10–20% to your calculated force to account for variations and ensure reliable operation.
For advanced operations, such as optimizing part ejection, see this guide on how to optimize part ejection in stamping.
Step 5: Select the Appropriate Press
Once you have determined the required force (including your safety margin), select a press with a capacity that meets or exceeds this value. Consider:
- Press Type: Mechanical presses are suitable for high-speed blanking; hydraulic presses offer more control for forming and deep drawing.
- Stroke Length and Speed: Ensure the press can accommodate your die set and production rate.
- Tooling Compatibility: The press should be compatible with your die design and part geometry.
Common Mistakes and Tips
- Ignoring Material Variability: Always verify material properties with your supplier.
- Underestimating Safety Margins: Never use a press at its absolute maximum capacity.
- Overlooking Die Wear: Regular maintenance reduces unexpected increases in required force.
- Not Considering Scrap Removal: Efficient scrap handling (see how to optimize scrap chute angles) can improve process reliability.
FAQs on Stamping Force Calculations
What is the difference between blanking and piercing force calculations?
Both blanking and piercing use similar formulas, but blanking typically refers to cutting out the desired part, while piercing creates holes. The force calculation is based on the perimeter of the cut and the material properties in both cases, but piercing may require less force due to smaller perimeters.
How do I find the shear strength of my material?
Shear strength values are usually available from material suppliers or engineering handbooks. If not, you can estimate it as approximately 80% of the material’s tensile strength for many steels, but always verify for critical applications.
Can I use the same formula for non-metal materials?
The basic approach applies to plastics and other materials, but you must use the correct shear strength for the specific material. Always consult supplier data or perform sample tests for accuracy.
Conclusion
Mastering the process of calculating stamping force requirements is fundamental for efficient, safe, and high-quality metal forming operations. By following the steps outlined here—gathering accurate data, applying the correct formulas, and considering real-world variables—you can ensure your stamping process runs smoothly and your parts meet the highest standards. Always remember to factor in safety margins, maintain your equipment, and consult with material suppliers for the most reliable results.
