How to Analyze Stamping Die Failure: Root Cause Analysis

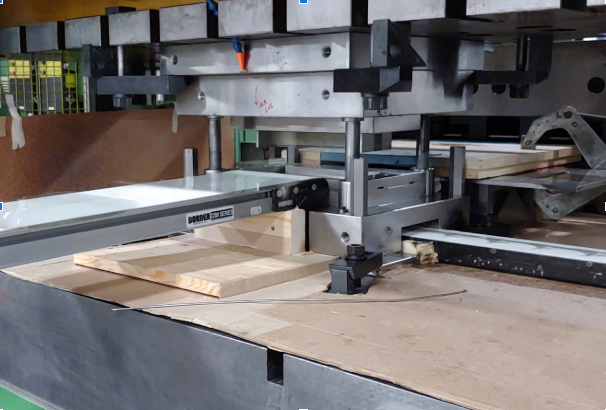

Stamping dies play a critical role in manufacturing, shaping metal parts with precision and speed. However, even the most robust dies can fail, causing production delays, increased costs, and quality issues. Understanding how to analyze stamping die failure is essential for engineers, toolmakers, and quality professionals who want to minimize downtime and prevent recurring problems. This guide explores the systematic approach to root cause analysis, the most common failure modes, and practical steps to diagnose and resolve die issues effectively.

Before diving into the technical process, it’s important to recognize that die failures rarely have a single cause. Material properties, die design, maintenance practices, and process parameters all interact in complex ways. By following a structured analysis, manufacturers can identify not just the immediate symptom but the underlying factors that lead to breakdowns.

For those interested in related topics, understanding steel stamping material yield strength considerations can provide valuable context for analyzing die performance and failure modes.

Why Stamping Dies Fail: Common Causes and Warning Signs

Failures in stamping dies can manifest in several ways, from minor surface defects to catastrophic breakage. Recognizing the early warning signs is the first step in effective troubleshooting. Some of the most frequent causes include:

• Wear and abrasion: Progressive loss of material from die surfaces due to repeated contact with workpieces.
• Chipping and cracking: Sudden fractures, often at sharp corners or stress concentration points.
• Gall and scoring: Adhesion of workpiece material to the die, resulting in scratches or gouges.
• Misalignment: Improper die setup or press issues causing uneven loading and accelerated damage.
• Improper material selection: Using die steels or coatings that are not suited for the application or workpiece material.
• Inadequate lubrication: Insufficient or incorrect lubricant leading to increased friction and heat.

Early detection of these problems—such as noticing burrs, dimensional inaccuracies, or abnormal noises—can prevent more serious failures and reduce repair costs.

Step-by-Step Approach to Root Cause Analysis in Die Failures

When a die fails, a systematic approach is crucial for uncovering the true causes. Here’s a structured process for analyzing stamping die failures:

1. Document the Failure Event
   • Record the exact time, press settings, material batch, and operator involved.
   • Take clear photographs of the failed die and affected parts.
   • Collect any broken fragments or worn components for further examination.
2. Visual and Physical Inspection
   • Look for obvious signs of wear, cracks, or deformation.
   • Check for discoloration, excessive heat marks, or lubricant residue.
   • Measure critical dimensions to identify out-of-tolerance features.
3. Review Die and Process History
   • Analyze maintenance logs, previous repairs, and tool life records.
   • Compare with similar dies or operations to spot patterns.
   • Review any recent changes in material, press speed, or lubrication.
4. Material and Hardness Testing
   • Test the die steel for hardness and composition to ensure it meets specifications.
   • Check the workpiece material for contaminants or unexpected properties.
5. Failure Mode Identification
   • Classify the type of failure: fatigue, overload, wear, thermal damage, etc.
   • Use magnification or microscopy for detailed analysis of fracture surfaces.
6. Root Cause Hypothesis and Verification
   • Develop possible causes based on evidence (e.g., misalignment, improper heat treatment).
   • Test hypotheses by replicating conditions or consulting with toolmakers and engineers.
   • Implement corrective actions and monitor results in subsequent production runs.

Key Tools and Techniques for Die Failure Investigation

Effective diagnosis of die problems relies on both traditional inspection and advanced analytical tools. Some of the most useful methods include:

• Microscopy: Examining fracture surfaces at high magnification to distinguish between brittle and ductile failures.
• Hardness testing: Verifying that die components meet required hardness levels, which can reveal improper heat treatment or material mix-ups.
• Non-destructive testing (NDT): Using ultrasonic, magnetic particle, or dye penetrant methods to detect hidden cracks or flaws.
• Finite Element Analysis (FEA): Simulating die stresses and deformation under load to identify weak points or design flaws.
• Process monitoring: Reviewing press force signatures, cycle times, and lubrication flow to spot anomalies.

Combining these techniques with a thorough review of process data enables a comprehensive understanding of why a die failed and how to prevent recurrence.

Preventive Measures and Best Practices

Once the root cause is identified, implementing corrective and preventive actions is vital. Here are some proven strategies to extend die life and minimize future failures:

• Optimize die design: Use generous radii, avoid sharp corners, and select appropriate clearances to reduce stress concentrations.
• Choose suitable materials and coatings: Match die steel and surface treatments to the workpiece material and production volume.
• Maintain proper lubrication: Select lubricants compatible with both die and workpiece, and ensure consistent application.
• Regular inspection and maintenance: Establish a preventive maintenance schedule, including cleaning, inspection, and timely replacement of worn components.
• Monitor process parameters: Track press force, alignment, and temperature to catch deviations early.
• Train operators and technicians: Ensure personnel are equipped to recognize early signs of trouble and follow best practices in die setup and handling.

For more on optimizing related aspects of stamping, see guidance on how to optimize scrap chute angles and best practices for stamping coated steels.

Integrating Safety and Quality in Die Failure Analysis

Beyond productivity, safety is a major concern when dealing with stamping die failures. Broken dies can pose risks to operators and equipment. Implementing robust safety protocols, such as guarding, lockout/tagout procedures, and regular safety audits, is essential. For more on maintaining a safe environment, refer to guidelines for safety in steel stamping parts production.

Quality assurance teams should also be involved in the root cause analysis process, ensuring that corrective actions are documented and verified. This collaborative approach helps build a culture of continuous improvement and reliability in stamping operations.

FAQ: Troubleshooting and Preventing Stamping Die Failures

What is the most common cause of stamping die failure?

The most frequent cause is wear and abrasion due to repeated contact with workpiece materials. However, improper die design, inadequate lubrication, and material defects are also significant contributors.

How can I quickly identify the root cause of a die failure?

Start by documenting the failure, inspecting the die visually, and reviewing process history. Use hardness testing and microscopy for deeper analysis. Comparing with similar past failures can also provide valuable clues.

What preventive steps can extend the life of stamping dies?

Regular maintenance, proper lubrication, using the right die materials, and monitoring press parameters are key. Operator training and adherence to best practices further reduce the risk of unexpected breakdowns.

Conclusion

Mastering how to analyze stamping die failure is crucial for maintaining efficient and reliable manufacturing operations. By following a structured root cause analysis process, using the right diagnostic tools, and implementing preventive measures, manufacturers can minimize downtime, reduce costs, and ensure consistent part quality. Staying proactive with inspection, maintenance, and training will help prevent future failures and keep production running smoothly.
